Creating a bottle mold is an essential part of modern manufacturing, especially in the packaging industry. From water bottles to cosmetic containers, countless products rely on perfectly shaped bottles that are mass-produced with precision and consistency. Behind this production lies the engineering process of bottle mold creation, which transforms design ideas into physical molds capable of producing thousands or even millions of identical bottles.
This article explains, in simple terms, how bottle molds are created, from the concept and design stages to materials selection, manufacturing, testing, and final production. Whether you are new to the field or simply curious about how everyday bottles are made, this comprehensive guide will walk you through each important step in the process.

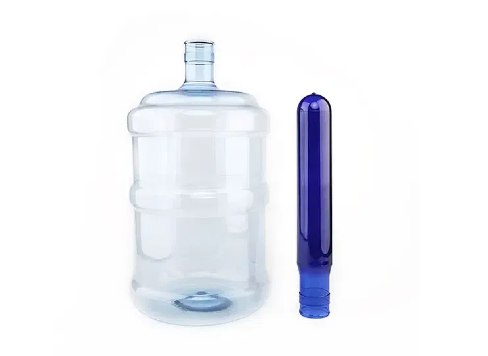

Bottle molds are tools used in plastic molding processes to form hollow containers. The mold itself defines the shape, size, and surface texture of the final bottle. Molds are typically made of durable materials such as steel or aluminum, designed to withstand high temperatures and pressures involved in molding methods like injection stretch blow molding or extrusion blow molding.
There are different types of bottle molds depending on the application, but most follow a similar principle: molten plastic is forced into a mold cavity, shaped into the desired form, cooled, and then ejected as a finished product. Because of this, mold accuracy and surface quality are critical to ensure consistent product performance and aesthetics.

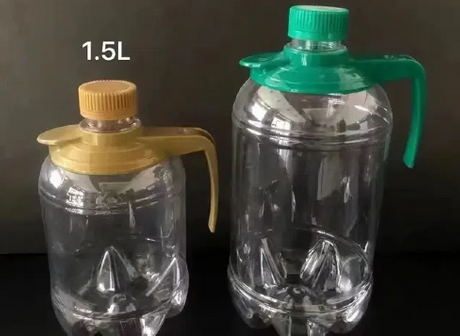

Every bottle mold begins with a concept. The client or manufacturer first identifies what the final bottle needs to look like and what it needs to do. This includes considering:
Volume and capacity: Whether it holds 250 ml, 500 ml, or 1 liter.
Neck finish and cap compatibility: Threading for closures must match.
Shape and ergonomics: For both appearance and user comfort.
Label area and brand identity: Must allow for clear label placement.
Material type: PET, HDPE, LDPE, or other plastics.
Once the product requirements are outlined, a digital 3D model is created using CAD (Computer-Aided Design) software. This model shows the exact shape of the bottle, dimensions, wall thickness, and all functional or decorative features. CAD models are essential not only for visualization but also for simulating how the bottle will perform under real-world conditions, including pressure, impact, and stacking loads.
With the bottle design finalized, the focus shifts to designing the mold itself. Mold design involves engineering a precision tool that can repeatedly produce the desired bottle with minimal defects and downtime.
Key elements in mold design include:
Mold cavity and core: These define the exterior and interior shapes of the bottle.
Parting lines and split geometry: Determine how the mold opens and how the bottle is removed.
Cooling channels: These help manage heat and reduce cycle times.
Ejection system: Mechanisms to safely push the finished bottle out of the mold.
Vents and air traps: Allow trapped air to escape during molding to prevent defects.
Mold designers must also consider shrinkage, which refers to the reduction in plastic size as it cools and solidifies. This must be accounted for during dimensioning to ensure the final product meets specifications.
Once the mold design is complete, choosing the right material for mold construction is crucial. The material must be durable enough to handle repeated molding cycles without warping or wearing out.
The most commonly used materials include:
Tool Steel (e.g., P20, H13): Offers excellent strength, machinability, and wear resistance. Suitable for high-volume production.
Aluminum: Lightweight and easier to machine. Often used for prototyping or low-volume runs.
Beryllium Copper: Used in combination with other metals to improve thermal conductivity.
The choice of material depends on the expected production volume, the type of plastic being used, and budget constraints. For example, an aluminum mold may be sufficient for 10,000 bottles, while steel is better for producing millions.
The physical creation of the mold begins with machining. This is the process of cutting and shaping the mold material using specialized machinery and tools. Key techniques include:
CNC Milling: Computer-controlled machines carve out complex mold shapes with precision.
EDM (Electrical Discharge Machining): Used for intricate details, tight corners, and hard-to-machine areas.
Grinding and Polishing: Ensures a smooth surface finish, which directly affects the clarity and gloss of the final bottle.
Tolerances must be extremely tight during machining, often within a few microns. A poorly machined mold can cause flash (excess plastic), warping, or other defects in the final product. Once the cavities, cores, and moving parts are complete, the mold is assembled, and trial runs can begin.
Before going into full-scale production, the new mold must be tested. This trial stage ensures that the mold functions properly under real molding conditions. Testing involves installing the mold into a blow molding machine and producing sample bottles.
During this phase, the following are evaluated:
Fit and alignment of mold components.
Surface quality of the molded bottles.
Wall thickness uniformity to ensure structural integrity.
Cycle time and cooling efficiency.
Ejection performance to avoid damage to parts.
If defects or inconsistencies appear, mold adjustments are made. These may involve modifying venting, adjusting cooling channels, or tweaking mold dimensions. It’s common for a mold to go through several trials and refinements before it’s approved for full production.
Once testing is successful and quality standards are met, the mold is ready for regular production. At this stage, the mold becomes a vital tool in the manufacturing line, often producing thousands of bottles per day.
To ensure mold longevity and consistent product quality, ongoing maintenance is critical. This includes:
Cleaning the mold after each production run to remove plastic residue.
Inspecting for wear or cracks in the cavity or core.
Lubricating moving parts to prevent seizing or misalignment.
Repolishing surfaces to maintain smooth finishes.
A well-maintained mold can last for several years and produce millions of units, making it a valuable investment in any manufacturing operation.
As technology progresses, modern mold-making is benefiting from several innovations:
3D Printing for Prototyping: Rapid prototyping using resin or metal allows for quicker testing of designs before full-scale mold investment.
Simulation Software: Mold flow analysis helps predict how plastic will behave during injection or blowing, helping to optimize design before cutting any metal.
Automated Tooling Systems: Robotic machining and automated measurement tools enhance accuracy and repeatability in mold production.
These technologies reduce errors, shorten development time, and increase the quality and performance of the final mold.
Creating a bottle mold is a complex process that combines engineering, materials science, and precision manufacturing. Whether the goal is to develop a water bottle, oil container, or cosmetic packaging, a reliable mold determines the quality and consistency of the final product.
Therefore, working with experienced mold designers and manufacturers is essential. These professionals bring technical expertise, equipment capabilities, and industry knowledge that can streamline development and ensure the mold meets performance requirements.
Outsourcing to skilled manufacturers also ensures regulatory compliance, efficient turnaround times, and the flexibility to accommodate custom features or short-run productions.
The process of creating a bottle mold is both a science and an art, involving careful planning, material selection, precise machining, and rigorous testing. Every step, from concept design to mold maintenance, plays a crucial role in the success of bottle production.
For businesses entering the packaging industry or looking to improve their bottle manufacturing capabilities, understanding how bottle molds are created offers valuable insight into the broader production process. By focusing on design quality, material choice, and expert manufacturing practices, companies can ensure their bottles are durable, attractive, and cost-effective.
As the demand for innovative packaging continues to grow, so does the need for high-performance molds. With advancements in technology and materials, the future of bottle mold creation promises even greater precision, speed, and flexibility—opening up new opportunities for manufacturers worldwide.
