Water bottles are among the most common plastic products used daily by millions of people worldwide. Whether for drinking water, sports, or other beverages, plastic water bottles are manufactured through precise processes involving specialized molds. But have you ever wondered what a water bottle mold looks like? How it is designed and structured to produce those familiar shapes? This article will explore the components, design, and appearance of water bottle molds, providing a clear understanding of their function and significance in manufacturing.
A water bottle mold is a tool used in plastic molding processes, primarily blow molding, to shape molten plastic into the form of a bottle. These molds are essential because they determine the final shape, size, and features of the bottle, from the body and neck to the threading where the cap screws on.
Unlike the finished water bottles we see on store shelves, water bottle molds are typically large, heavy, and made of strong metals such as steel or aluminum. Their design is highly technical and precise, combining intricate internal cavities and cores to replicate the bottle’s interior and exterior surfaces.
Before diving into what the mold looks like, it’s important to understand the two main types of molding processes used to make water bottles, which influence mold design:
Injection Blow Molding (IBM)
Extrusion Blow Molding (EBM)
In IBM, the mold usually consists of three parts:
Injection mold (preform mold): This mold creates a small, test-tube-shaped piece called a preform.
Blow mold: The preform is placed inside this mold, then inflated to the final bottle shape.
Core rod: Fits inside the preform to create the hollow inside of the bottle.
The injection mold for the preform is typically smaller and highly detailed to form the threaded neck and bottle shape. The blow mold is larger and focuses on expanding the preform to the bottle’s full size.
The EBM mold consists mainly of two halves of a cavity that close around a hollow tube of molten plastic called a parison. When the mold closes, air is blown into the parison, pushing it against the mold walls to form the bottle.
The mold halves are usually large and shaped exactly like the outside of the bottle. They have precise features for the neck, body, and base.
Water bottle molds typically look like large metal blocks, often rectangular or cylindrical, depending on their type and application. They can weigh hundreds of kilograms to several tons, depending on bottle size and production scale.
When assembled, the mold forms a hollow cavity that matches the bottle’s external shape. For two-part molds (common in blow molding), the mold splits in the middle and opens to release the finished bottle after molding.
The exterior of the mold might have visible cooling channels, ejector pin holes, and attachment points for mounting on molding machines.
Cavity and Core
The cavity is the hollow space where the plastic material takes shape. It represents the outer contour of the water bottle.
The core is the part inserted inside the cavity, defining the bottle’s internal hollow space.
In blow molding, the core often includes the core rod, which supports the preform and forms the bottle’s interior neck and hollow space.
Cooling Channels
Since the plastic needs to cool and solidify quickly, molds contain internal water or oil channels that circulate coolant to maintain temperature and reduce cycle time.
Ejector System
After molding, the bottle must be removed without damage. The mold includes ejector pins or plates that push the bottle off the mold surfaces safely.
Parting Line
The mold splits along a precise parting line, usually running around the bottle’s widest circumference. This line is where the two halves meet and open.
Vents
Small vents in the mold allow trapped air to escape during molding, preventing defects like bubbles or incomplete fills.
Imagine slicing through the mold to see inside. You would find:
A hollow cavity shaped exactly like the bottle’s outside surface, with smooth or textured finishes depending on bottle design.
A core pin or rod centered inside the cavity that defines the bottle’s internal hollow area, including the neck and threading.
A network of tiny cooling channels near the mold surfaces, often invisible from outside, designed to carry water or coolant.
Ejector pins embedded in strategic locations, usually near the base, ready to push the bottle out.
Alignment guides or guide pins that ensure the mold halves close perfectly without misalignment.
In production, the mold performs a repetitive cycle:
The mold halves open to eject the finished bottle.
A molten plastic preform or parison is placed or extruded.
The mold halves close tightly around the plastic.
Air is blown inside the plastic, forcing it to expand and fill the mold cavity.
The cooling system rapidly solidifies the plastic.
The mold halves open, and ejector pins push the bottle out.
Smaller injection mold cavities for the preform, often intricate with detailed neck threading.
Larger blow mold cavities for bottle shaping, often made of two large metal halves.
Core rods or pins visible as slender metal pieces inserted into the mold.
Two large mold halves, heavy and thick, shaped exactly like the final bottle’s outside.
No preform cavity since the plastic is extruded directly into the mold.
Visible cooling channels and vent holes on mold surfaces.

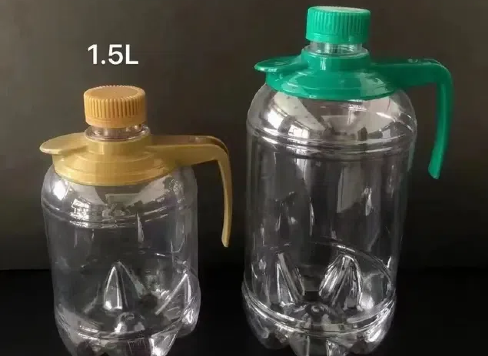

Water bottle molds come in many sizes, depending on the bottle volume—ranging from small 250ml bottles to large 2-liter bottles.
Small bottle molds are more compact but still heavy due to steel construction.
Larger bottle molds can be much bulkier, with reinforced structures to withstand the molding pressure.
Shapes vary widely:
Cylindrical, smooth water bottles
Bottles with ergonomic grips or textured surfaces
Bottles with wide or narrow neck finishes
The mold reflects every curve and detail, so it can be quite complex for uniquely designed bottles.
As mentioned earlier, water bottle molds are usually made of:
Hardened steel (such as H13 or P20): for durability and precision.
Aluminum: for prototypes or low-volume runs.
Sometimes, copper alloys or coatings to improve heat transfer and reduce wear.
The materials are polished to a mirror finish or textured, depending on the bottle surface requirements.
The mold’s design and precision influence:
The bottle’s final dimensions and aesthetics.
Production efficiency and cycle time.
Durability and lifespan of the mold.
Consistency and quality of every bottle made.
The ability to reduce waste and defects.
Manufacturers invest heavily in mold design and fabrication to optimize these factors.
Modern mold makers use advanced tools and technology such as:
CAD and CAM software for precise design and manufacturing.
3D printing for rapid prototyping of mold parts.
Simulation software to optimize mold cooling and plastic flow.
Advanced materials and coatings to extend mold life and improve performance.
These innovations enable complex bottle designs and faster, more cost-effective production.
In summary, a water bottle mold is a large, precisely engineered metal tool made up of two or more parts that come together to form a hollow cavity matching the bottle’s outer shape. Inside the mold, a core or core rod shapes the bottle’s internal cavity. The mold contains cooling channels, ejector systems, vents, and alignment features to support efficient, repeated production.
The mold itself appears as heavy steel blocks, often polished or textured on the inside surfaces, and with external features for cooling and handling. Its size and complexity depend on the bottle’s design and volume.
Understanding what a water bottle mold looks like reveals the incredible engineering behind everyday plastic bottles and highlights the importance of molds in the plastics industry.
