Plastic bottles are everywhere—used for water, beverages, cosmetics, cleaning products, and much more. These bottles are typically produced using plastic bottle molds, which are specialized tools that shape molten plastic into the desired bottle shape. The process of making these molds is critical for manufacturing bottles efficiently and with consistent quality.
In this article, we will explain how to make a plastic bottle mold in a simple and detailed way. Whether you're a beginner in manufacturing or just curious about the process, you’ll learn about the key steps involved, the materials used, the design principles, and how the final molds help create millions of plastic bottles every day.
A plastic bottle mold is a precision tool used in the plastic molding process. It shapes melted plastic resin into the bottle's form by creating a cavity—the hollow space that determines the bottle’s external shape—and a core, which forms the bottle’s inner surface.
These molds are essential in various molding methods, especially:
Blow molding (including injection blow molding and extrusion blow molding), which is the most common process for making hollow bottles.

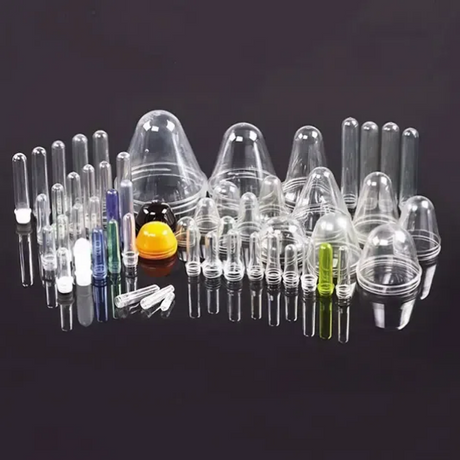

Injection molding, for making preforms (small, test-tube shaped parts) that are later blown into bottles.
The quality and durability of the mold directly impact the efficiency of production and the quality of the finished bottles.
Before making the mold, you must have a detailed design of the bottle you want to produce. This stage involves:
Defining bottle size and capacity: How much liquid will the bottle hold? This influences its dimensions.
Selecting the bottle shape: Cylindrical, square, custom ergonomic shapes, or decorative designs.
Neck and finish design: The threading or closure design is critical for sealing and compatibility with caps.
Wall thickness: Uniform wall thickness ensures strength and avoids weak points.
Material selection: Common plastics include PET (polyethylene terephthalate), HDPE (high-density polyethylene), and others.
Engineers use CAD (Computer-Aided Design) software to create a 3D model of the bottle. This model is essential as it guides the entire mold-making process. Modern CAD software also allows simulation of material flow and stresses to ensure the bottle will perform as expected.
Once the bottle design is ready, the mold design can begin. Mold design translates the bottle’s shape into a tool that will produce that shape repeatedly and accurately.
Important factors in mold design include:
Mold cavity and core: The negative and positive shapes forming the bottle’s exterior and interior.
Parting line: The line where the two halves of the mold meet; it must be carefully planned to minimize visible seams and flash.
Cooling channels: Pathways drilled inside the mold to circulate cooling fluid and speed up solidification.
Ejection system: Mechanisms like ejector pins that help remove the molded bottle without damage.
Vents: Small gaps or channels allowing trapped air to escape during molding to prevent defects.
Mold designers must also consider shrinkage, which is the slight reduction in plastic size as it cools. The mold cavity dimensions are adjusted to compensate for this shrinkage, ensuring the finished bottle has the correct size.
The mold’s material must be strong, durable, and resistant to heat and wear because it is subjected to repeated cycles of molding under high temperatures and pressures.
Common mold materials include:
Tool Steel: Materials like P20 or H13 are widely used for their hardness, toughness, and resistance to wear. Steel molds are ideal for long production runs.
Aluminum: Easier and faster to machine, aluminum molds are often used for prototyping or low-volume production.
Beryllium Copper: Sometimes combined with steel inserts to improve heat transfer.
The choice of material balances cost, production volume, and expected mold life.
With the design and materials selected, the physical mold can be made through machining. This is a highly precise process involving:
CNC Milling: Computer-controlled machines cut the mold material to create the detailed cavity and core shapes.
EDM (Electrical Discharge Machining): Used for intricate or hard-to-machine sections.
Grinding and Polishing: Polishing the mold surfaces is vital for the final bottle’s appearance and to ensure smooth plastic flow.
Accuracy is crucial; even small errors can cause defects like flash, warping, or incomplete fills in the molded bottles.

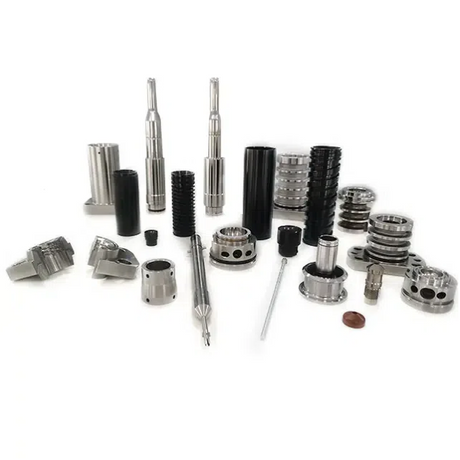

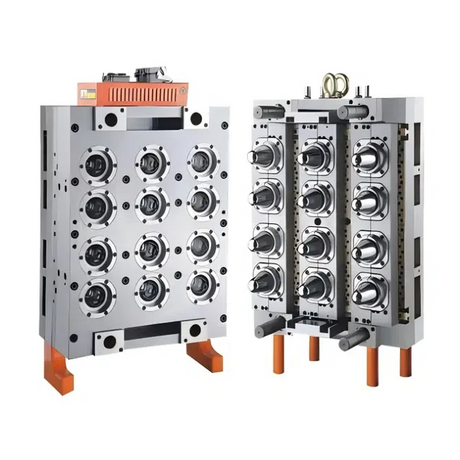

After machining, the mold parts—usually two halves (core and cavity)—are assembled together. Other components like cooling channels, ejector pins, and vents are installed.
The assembly must allow precise opening and closing of the mold during molding cycles without misalignment. This ensures uniform bottle quality and minimizes wear on the mold.
Before full-scale production, the mold undergoes testing. It is installed in a blow molding machine, and sample bottles are produced to check:
Dimensional accuracy
Surface finish quality
Wall thickness uniformity
Cycle time and cooling efficiency
Ejection system function
Any defects observed during testing lead to mold modifications such as adjusting vents, improving cooling, or refining cavity surfaces.
Once testing is successful, the mold enters full production. High-quality molds can produce millions of bottles over their lifetime.
Regular mold maintenance is crucial to:
Clean residue and debris
Check for wear and damage
Lubricate moving parts
Re-polish surfaces if necessary
Proper care extends mold life and maintains bottle quality.
Plastic bottles are often mass-produced in huge quantities. Even small deviations in mold design or machining can lead to significant losses due to defective bottles or machine downtime.
A well-made mold ensures:
Consistent product quality
Efficient production with minimal waste
Reduced maintenance and longer mold life
Lower manufacturing costs over time
Modern bottle mold making has benefited from several technological advances:
3D Printing for Rapid Prototyping: Allows faster, cheaper testing of bottle and mold designs before committing to costly machining.
Simulation Software: Mold flow analysis helps optimize mold design and production parameters to avoid defects.
Automated CNC Machining: Improves precision and repeatability in mold fabrication.
High-Performance Coatings: Extend mold life by reducing wear and improving surface finish.
These advances speed up development and improve final product quality.
Making a plastic bottle mold is a complex, multi-step process that requires expertise in design, materials, and precision manufacturing. It begins with designing the bottle and mold in CAD software, followed by careful material selection, precise machining, assembly, testing, and ongoing maintenance.
A good bottle mold is critical for producing high-quality, consistent plastic bottles efficiently. Whether you are producing small batches or millions of bottles, understanding the mold-making process helps you appreciate the skill and technology behind this everyday product.
With continual advancements in mold-making technologies, the production of plastic bottles becomes more efficient, cost-effective, and adaptable—supporting a wide range of industries worldwide.
