In plastic injection molding, cooling dictates up to 70–80% of your total cycle time. Marginal inefficiencies in thermal transfer severely bottleneck high-volume production. They drive up cost-per-part and drain your overall equipment effectiveness. Every wasted second eats directly into operational margins. You need a strategically engineered preform mold cooling system to dictate cycle speed and ensure pristine part quality. Minimizing cycle time requires a fundamental shift in tooling logic. You must move away from generic cooling approaches. Instead, you need thermally mapped, fluid-dynamic channel architectures.
In this article, you will learn exactly how advanced cooling pathways extract heat faster without compromising dimensional stability. We will explore turbulent flow dynamics, complex geometry challenges, and strict engineering criteria. You will discover actionable steps to evaluate tooling partners and secure a system designed for maximum thermal efficiency.
The cooling phase is the absolute limit on your cycle speed. Molten plastic enters the cavity at extremely high temperatures. Plastic acts as a natural thermal insulator. It fiercely resists giving up its heat. The mold must actively strip this thermal energy away before the part can safely eject. If you rush ejection before proper cooling, the plastic remains too soft. This premature ejection destroys part geometry.
Every fraction of a second matters in high-volume manufacturing. A tiny 0.1-second reduction in cycle time transforms your profit margins. Shaving just one-tenth of a second across millions of cycles yields thousands of extra parts per week. Faster thermal extraction directly drives higher annual yields. It maximizes machinery utilization and defers the need to buy additional presses.
However, you cannot chase speed blindly. You must balance rapid cooling against strict quality criteria. Aggressive, unbalanced thermal extraction induces severe residual stress. It can cause dangerous dimensional inconsistencies. Poor thermal management also increases the risk of acetaldehyde (AA) generation. AA ruins the flavor profile of beverages stored in PET bottles. Success requires achieving maximum thermal extraction speed while preserving perfect dimensional stability.
Tooling engineers utilize several distinct architectures to manage thermal loads. Understanding these approaches helps you evaluate your tooling upgrades effectively.
Standard drilled channels represent the traditional approach. Manufacturers drill straight intersecting lines through standard tool steel blocks. These linear pathways are cheap to manufacture. Unfortunately, they suffer severe limitations. Straight lines cannot hug complex curved surfaces. They leave critical cavity areas isolated from the coolant. This isolation creates dangerous hot spots and prolongs your cycle times.
Baffles and bubblers offer a targeted solution for deep mold features. These devices force coolant into hard-to-reach cores.
These inserts vastly improve thermal reach. However, they introduce a distinct engineering trade-off. Forcing liquid through narrow directional inserts drastically increases pressure drop. Your pumps must work much harder to maintain flow.
Conformal cooling represents the pinnacle of modern thermal management. Additive manufacturing processes, like Direct Metal Laser Sintering (DMLS), make conformal channels possible. Engineers design these channels to wrap equidistantly around the part contour. The coolant precisely follows every curve and draft angle. This equidistant proximity maximizes heat extraction rates. It guarantees perfectly uniform cooling across the entire preform body.
Scaling these architectures requires massive engineering precision. When operating a multi-cavity PET preform mold, balanced distribution is non-negotiable. Whether you run 48, 72, or 96 cavities, every single drop must experience the exact same thermal conditions. Imbalanced manifolds cause outer cavities to cool slower than central ones. This forces operators to slow down the entire press to accommodate the hottest cavity.
Objective metrics dictate the performance of any PET preform mold cooling system. You cannot rely on guesswork. You must evaluate fluid dynamics and material science.
Turbulent flow maintenance is your primary objective. Fluid dynamics categorizes flow into three main states: laminar, transitional, and turbulent. You must engineer your system to achieve a Reynolds number greater than 4,000. This guarantees fully turbulent flow.
Laminar flow acts as an insulator. Water travels in parallel layers without mixing. The layer touching the hot steel absorbs heat, but it stays trapped against the wall. The cooler water in the center never reaches the steel. Turbulent flow solves this. Chaotic, swirling water constantly mixes. It aggressively scrubs heat from the channel walls and carries it away.
| Flow State | Reynolds Number (Re) | Heat Transfer Efficiency | Impact on Cycle Time |
|---|---|---|---|
| Laminar | < 2,000 | Very Low | Prolongs cycle; poor extraction |
| Transitional | 2,000 - 4,000 | Moderate | Unpredictable cooling rates |
| Turbulent | > 4,000 | Maximum | Shortens cycle; optimal extraction |
Delta T (ΔT) control represents another vital metric. Delta T measures the temperature differential between the coolant inlet and outlet. A high-performance mold aims for a Delta T of less than 1°C to 2°C. A massive temperature jump indicates uneven heat removal. If the water enters at 10°C and exits at 18°C, the cavities near the outlet receive much less cooling. Strict Delta T control guarantees uniform thermal extraction across all drops.
You must also carefully evaluate pressure drop limits. A poorly engineered channel demands excessive pump pressure. High pressure drops strangle your hydraulic efficiency. They waste facility energy and strain your pumping equipment. The manifold must distribute coolant evenly without choking the flow rate.
Finally, consider material thermal conductivity. Standard tool steel offers decent durability but mediocre thermal transfer. High-performance molds often utilize specialized alloys. Inserts made from beryllium copper pull heat out three to four times faster than standard steel. Strategic placement of these highly conductive alloys drastically shortens cooling times in thick-walled sections.
Not all preforms face the same thermodynamic hurdles. Part geometry directly dictates your cooling strategy. Standard lightweight water bottles require relatively straightforward thermal management. Complex geometries demand radical design shifts.
Thermal load increases exponentially as preform wall thickness grows. A part twice as thick takes significantly more than twice as long to cool. The plastic at the dead center of a thick wall traps heat entirely. Removing this deep heat requires immense thermal pulling power.
Wide-mouth packaging presents unique challenges. When operating a high-cavity jar bottle preform mold, the heat concentrates heavily at the neck. Wide-mouth jars possess massive, thick thread finishes. This dense plastic mass holds a tremendous amount of thermal energy. Standard cavity cooling cannot reach it effectively. The tooling must feature dedicated, high-flow neck ring cooling circuits. Without them, the threaded area deforms upon ejection, destroying the container's seal.

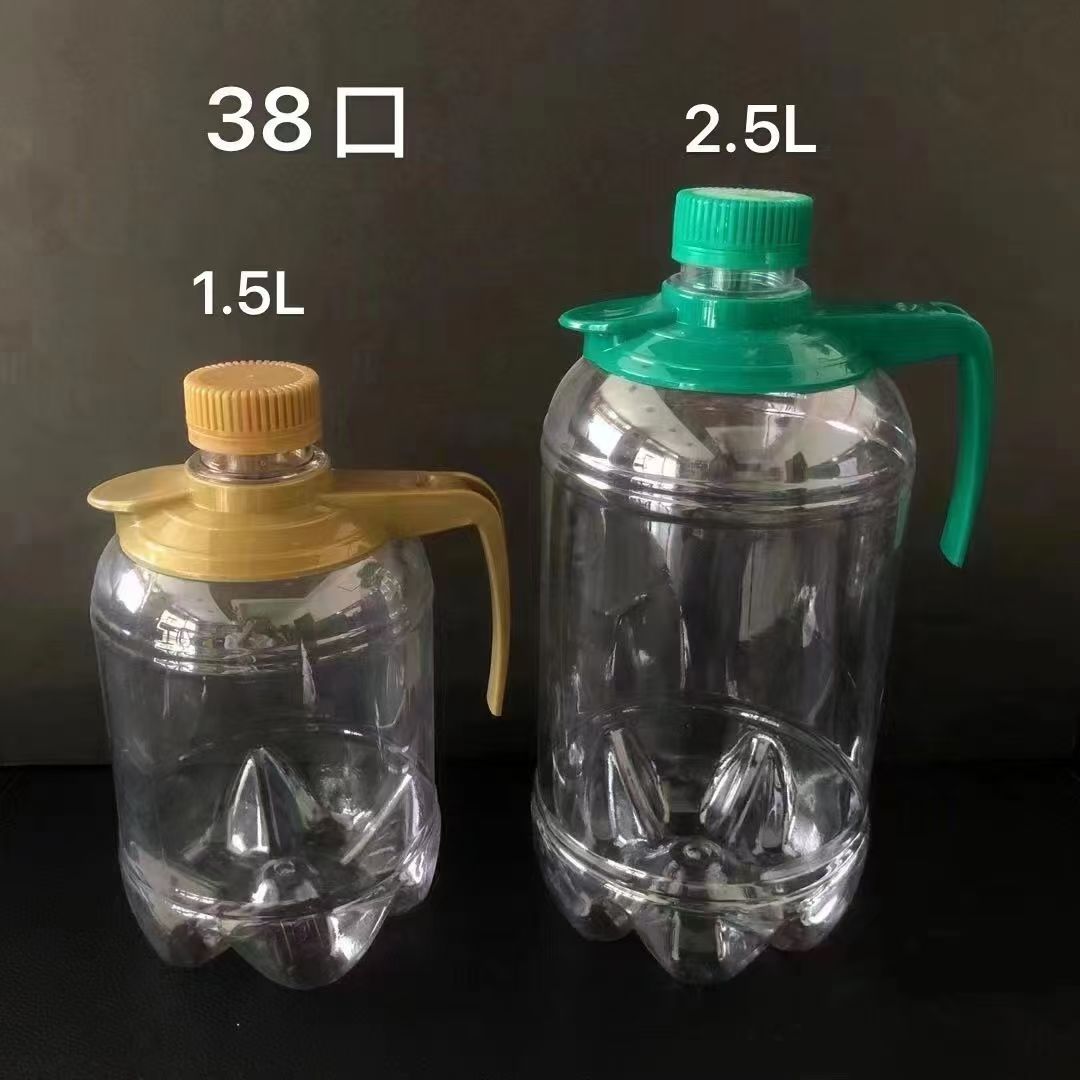

Large-volume containers require similar specialized logic. An edible oil preform mold faces severe heavy-wall cooling requirements. Edible oil bottles experience massive stretch ratios during blow molding. They start as very thick, heavy preforms. This massive thermal mass risks devastating core-shift during injection.
Furthermore, slow cooling in thick oil preforms leads to internal crystallization. If PET cools too slowly, the molecular structure turns crystalline. This makes the preform milky and opaque instead of perfectly clear. Extended core cooling circuits must aggressively chill the inside wall. This rapid quenching locks in the amorphous, clear state required for premium oil packaging.
Even the most brilliant thermal design fails if facility realities do not support it. Operational environments routinely compromise theoretical cooling performance.
Poor plant water quality destroys advanced tooling. Unfiltered water carries dissolved calcium and minerals. When heated inside the mold channels, these minerals precipitate out. They bake onto the channel walls, forming scale. A mere 0.1mm layer of scale acts as a severe thermal insulator. It effectively negates all your expensive conformal design benefits. You must maintain strict water chemistry and continuous filtration.
Complex conformal channels and small bubblers plug easily. Rust, scale, or biological growth quickly restricts flow. If flow drops, Reynolds numbers plummet into the laminar zone. Your cycle times will mysteriously lengthen. Systems must be designed for periodic, rigorous flushing. You need accessible manifold ports to run descaling chemicals through the circuits safely.
Tooling upgrades often fail because plants ignore existing infrastructure limits. A highly advanced mold demands massive, precise water flow. If your plant's existing chillers, cooling towers, or pumps lack capacity, the mold starves. The channels might be perfect, but inadequate pump pressure prevents turbulent flow. You must verify facility capacity before cutting steel.
Purchasing advanced tooling requires strict vendor scrutiny. You cannot accept unverified marketing claims about cycle speed. You must demand objective engineering proof.
First, mandate Computational Fluid Dynamics (CFD) analysis. Leading vendors run extensive Moldflow and thermal mapping simulations prior to manufacturing. These digital models prove how the coolant behaves inside the complex channels. They highlight potential hot spots and predict exact cycle times. Do not accept a design lacking simulated proof.
Next, define strict parameters for Factory Acceptance Testing (FAT). You should not sign off on tooling based solely on a dry cycle run. During FAT, you must verify flow rates per circuit using calibrated flow meters. Utilize thermal imaging cameras to inspect the ejected preforms. The thermal camera guarantees uniform temperature distribution across the entire part. This physical validation confirms the digital CFD promises.
Advanced cooling channel design functions as a structural business asset, not just an isolated engineering feature. Intelligent thermal management directly controls your production volume, part quality, and operational efficiency. By prioritizing turbulent flow dynamics and leveraging conformal architectures, you eliminate production bottlenecks. You effectively transform thermal physics into a distinct competitive advantage.
Skeptical buyers must validate all claims through thermodynamic simulation and rigorous physical flow testing. Never accept generic channel layouts for complex geometries. Complex thick-walled preforms demand specialized core and neck cooling strategies to prevent crystallization and defects.
We encourage you to perform an immediate audit of your current cycle times. Monitor your water temperatures, flow rates, and pressure drops. Schedule a detailed consultation with specialized tooling engineers to assess upgrade viability. Unlocking those trapped seconds will dramatically scale your manufacturing output.
A: You should target a Reynolds number greater than 4,000. This threshold ensures fully turbulent flow. Turbulent flow constantly mixes the fluid, rapidly pulling heat away from the mold walls. It prevents the insulating boundary layers associated with laminar flow, maximizing heat transfer efficiency.
A: Traditional baffles force fluid in straight lines, struggling to reach curved surfaces evenly. Conformal cooling uses 3D-printed channels that maintain an equidistant distance to the cavity wall. This wraps the cooling pathway perfectly around complex shapes, eliminating hot spots and linear flow limitations.
A: Edible oil preforms feature extremely heavy walls to accommodate large stretch ratios. This immense thermal mass takes much longer to cool. Inadequate core cooling causes the core to bend under pressure and allows internal crystallization, rendering the final PET bottle unacceptably opaque.
A: You should monitor the Delta T between your inlet and outlet water. Aim for a difference of less than 2°C. Additionally, measure the pressure drop across the manifold to check for blockages. Regularly inspect the internal channels for calcium scale buildup, which acts as a severe thermal insulator.
