High scrap rates in injection molding cost manufacturing facilities heavily every single year. Facility managers often point fingers at machine calibration or resin quality. However, seemingly unrelated defects like burns and short shots often share a single, hidden culprit. That culprit is inadequate gas evacuation.
Trapped air and compressed volatile gases act as invisible physical barriers inside the cavity. They forcefully disrupt the advancing plastic melt front. This unseen resistance prevents consistent cycle times and significantly lowers overall production yields. Operators struggle to maintain process stability when air cannot escape fast enough.
We will break down exactly how proper gas evacuation eliminates these stubborn defects. You will learn specific technical features to demand when evaluating new tool designs. Furthermore, we outline how to maintain these critical tolerances over time. You can sustain high-volume production efficiency safely without increasing the risk of plastic flash.
Improper gas evacuation causes the "dieseling" effect (burn marks) and flow resistance (short shots).
Precision preform mold venting is a balancing act between allowing air to escape and preventing plastic flash.
Scaling to a multi-cavity PET preform mold exponentially increases the need for balanced, engineered venting networks.
Routine maintenance and integration with high-quality preform mold accessories are non-negotiable for sustaining vent performance over millions of cycles.
Injection molding forces hot liquid polymer into a closed steel void at incredible speeds. Naturally, this void already contains ambient air. When molten plastic rushes in, it must displace this existing air. If escape channels are blocked or absent, the air has nowhere to go.
As the melt front advances, trapped air compresses tightly at the end of the fill cavity. This rapid compression creates immense physical back-pressure. The resistance pushes directly against the incoming plastic stream. Eventually, this opposing pressure equals the injection pressure. The melt front stalls prematurely. It stops the plastic from fully packing the designated space. You pull the part from the press, only to find incomplete threads or missing dome sections. The industry calls this incomplete filling a short shot.
Trapped air causes more than just physical resistance. It also generates extreme localized heat. During the high-speed injection phase, the machine compresses the air and chemical off-gasses rapidly. Basic thermodynamics dictate that rapid gas compression spikes temperatures instantly. Inside the cavity, temperatures can flash to hundreds of degrees in milliseconds. This extreme heat ignites the trapped volatile gases. The resulting micro-explosion scorches the leading edge of the polymer front. This leaves an ugly black or brown burn mark on the plastic surface. Engineers refer to this ignition as the "dieseling" effect.
These defects represent compounding operational losses rather than simple visual flaws. Wasted resin piles up quickly in the scrap bin. Operators must pause machines frequently to troubleshoot pressure settings. Unplanned downtime drains shift profitability. Furthermore, parts might appear visually acceptable while harboring weak molecular structures right at the microscopic burn site. This hidden weakness severely compromises the structural integrity of the final product.
Defect Type | Primary Mechanism | Visual Indicator | Hidden Risk |
|---|---|---|---|
Short Shot | Flow resistance from trapped gas back-pressure | Incomplete part geometries, missing edges | Dimensional instability, poor sealing |
Burn Marks | Rapid gas compression causing ignition (Dieseling) | Black or brown scorching at end-of-fill areas | Degraded molecular strength, brittle walls |
You cannot simply force plastic harder to overcome trapped air. Instead, you must provide a controlled escape route. Engineers machine intentional microscopic gaps into the steel plates. We call these channels vents. They channel displaced air out of the cavity safely, staying just ahead of the advancing melt front.
A well-designed vent creates a low-pressure pathway to the outside atmosphere. As the plastic fills the void, the air rushes out through these microscopic cuts. This continuous evacuation prevents dangerous pressure spikes. The plastic flows smoothly and predictably. You eliminate the root cause of both back-pressure and thermal ignition.
Designing these channels requires walking an extreme engineering tightrope. Cuts must be deep enough to allow rapid gas escape. However, they must remain shallow enough to block the molten polymer from sneaking out. If plastic escapes into the vent, it creates sharp, unwanted edges called flash. Operators must manually trim flash, which ruins production efficiency.
For PET applications, engineers measure these depths in mere hundredths of a millimeter. You must maintain this exact tolerance rigidly. Relying on properly engineered PET preform mold venting strategies becomes essential here. PET features uniquely low melt viscosity at processing temperatures. It will flash through gaps that thicker resins would naturally bridge.
Vents do not belong everywhere randomly. Tooling designers place them strategically using flow data. They position vents at the final end-of-fill locations where plastic travels last. They also cut vents along the primary parting lines where the two mold halves meet. Additionally, they place them precisely where separate flow fronts merge. These merge points, known as weld lines, trap air easily if not properly evacuated.
Scaling up production volume introduces entirely new gas evacuation challenges. What works for a simple prototype tool fails miserably in a high-speed environment.
Moving from a single cavity setup to a massive multi-cavity PET preform mold makes venting exponentially more difficult. A 72-cavity or 96-cavity system requires perfectly balanced air evacuation. If just one cavity suffers from a blocked vent, it creates uneven flow dynamics. The machine pushes harder to fill the blocked cavity, which over-packs the clean cavities. This creates terrible cavity-to-cavity variations. You must ensure uniform venting networks across the entire tool to maintain uniform part weights.

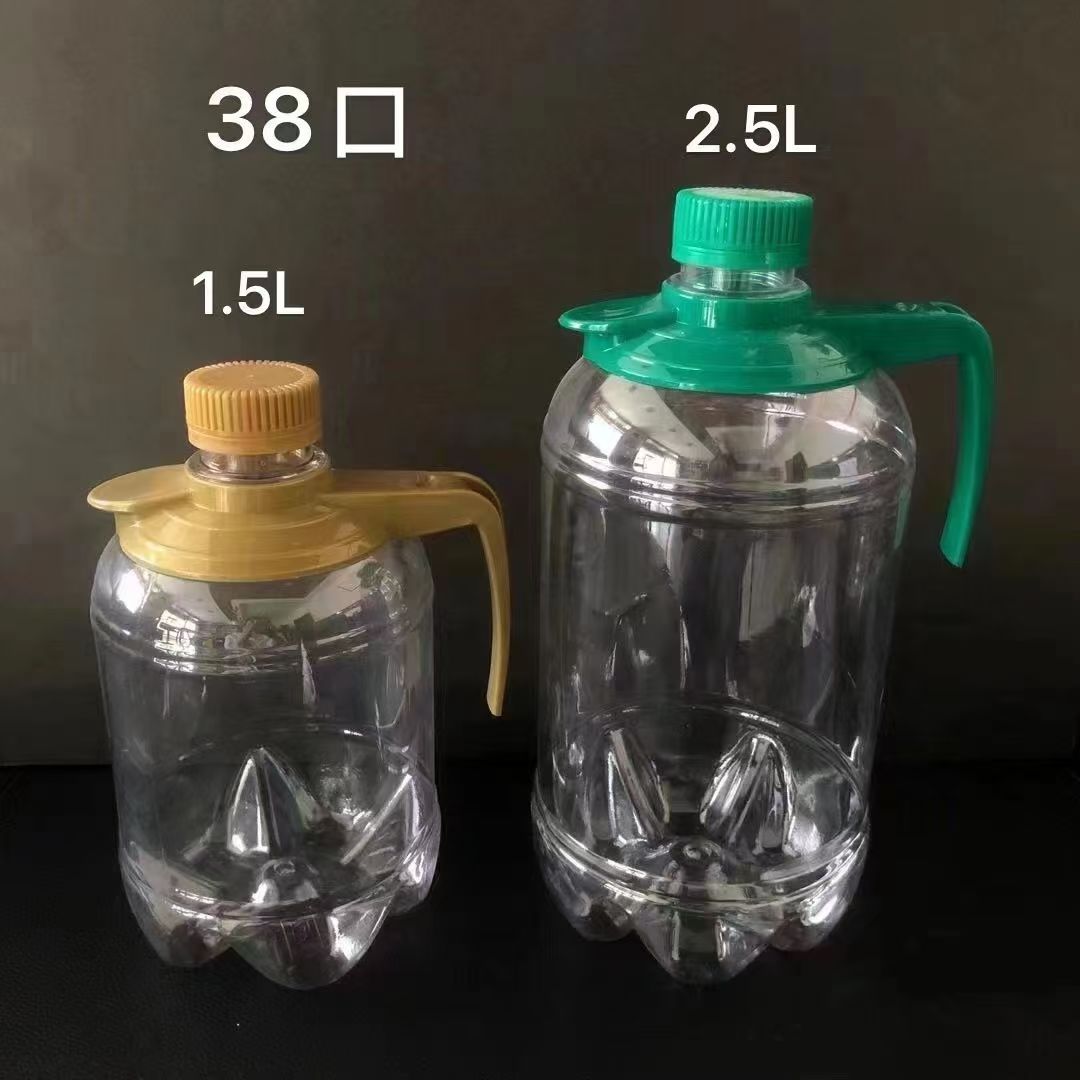

Consider the production of heavy-gram packaging. A large edible oil preform mold handles massive shot sizes. The thick plastic walls displace massive volumes of air instantly. They also generate significantly more chemical off-gassing from the sheer volume of hot polymer. Standard parting line cuts rarely handle this volume adequately. Designers must implement specialized configurations. They often rely on full perimeter venting rings or active vacuum assistance systems. These robust setups pull aggressive gas volumes away swiftly.
Effective molds require excellent cooling and excellent venting. Yet, surface real estate on a tool block remains highly limited. Cutting too many vents might weaken the structural steel. It might also intersect with complex internal cooling waterlines. Premium tooling providers optimize both necessities simultaneously. They weave cooling channels tightly around the cavity while routing vent relief paths safely outward. They achieve rapid cycle times and clean gas evacuation without ever sacrificing the structural strength of the mold base.
You must evaluate a tooling supplier's venting strategy before you ever sign a purchase order. Fixing poorly designed vents after the steel is cut costs tremendous time and money.
Always audit a toolmaker’s precision machining tolerances. Vents machined poorly will lead to rapid part flashing as the tool wears. Ask the supplier about their surface grinding equipment. Determine how they verify microscopic depths. If their machining tolerances fluctuate by even a few micrometers, the vent will either trap air or leak plastic from day one.
Venting does not function in isolation. It interacts closely with surrounding hardware. You should discuss how the venting channels integrate with other crucial preform mold accessories. Do they clear the guide pins safely? Do they align properly with the neck rings?
Evaluate whether the tooling supplier offers modular or replaceable vent inserts. High-speed injection creates severe wear right at the vent gate. When these high-wear areas inevitably degrade, operators should simply swap out a small insert. They should never have to pull the entire mold base out of the press for major re-machining.
Never approve a tool design based on guesswork. Demand rigorous data upfront.
Request Mold Flow Reports: Ask suppliers for comprehensive mold flow analysis data prior to cutting any steel.
Identify Air Traps: Use the simulation software to accurately predict where air pockets will naturally form during the fill stage.
Proactive Placement: Let the simulation data dictate exact vent placement rather than relying strictly on legacy design habits.
Review Pressure Drops: Ensure the simulated vents successfully reduce cavity back-pressure to safe operating limits.
Even the most perfectly engineered tool will fail if you ignore routine maintenance. You must maintain a realistic approach to shop floor operations.
We must acknowledge a difficult truth: all vents eventually accumulate stubborn residue. Hot plastic naturally releases chemical off-gassing. Material additives separate under high shear. Factory dust settles on oily steel. Over hundreds of thousands of cycles, this sticky residue builds up inside the microscopic channels. Vents slowly choke. When the channels narrow, air gets trapped all over again. Suddenly, short shots reappear on a tool that ran perfectly last week.
You prevent unexpected defect spikes through strict preventative maintenance (PM) routines. Outline clear protocols for your floor staff.
Shift-by-Shift Wipe Downs: Operators must wipe the parting lines with approved, non-abrasive shop cloths every single shift. This removes fresh, loose dust before it bakes onto the steel.
Solvent Cleaning: Apply specialized mold solvents weekly. Let the chemicals safely dissolve stubborn polymer residues hiding inside the shallow cuts.
Deep Ultrasonic Cleaning: Remove modular inserts regularly based on cycle counts. Place them into an ultrasonic bath. High-frequency sound waves blast away microscopic blockages deep inside the steel pores safely.
You cannot just clean the vents; you must also audit their physical dimensions over time. Injection molding presses clamp closed with thousands of tons of brute force. As molds clamp repeatedly, the delicate steel lands surrounding the vent can gradually crush or wear down.
If the lands crush inward, flow restricts. The channel closes up, and you see the immediate re-emergence of short shots. Conversely, if abrasive glass-filled resins round off the sharp vent edges, the gap widens. A widened gap allows molten plastic to seep through, causing aggressive flash. Maintenance teams must use precision depth gauges during major PM teardowns. Tracking these tiny dimensional changes allows you to replace worn inserts before they cause a massive scrap event.
Optimized gas evacuation is never just an afterthought in tool design. It stands as a core engineering requirement for achieving stable, defect-free production. By carefully managing trapped air and volatile gas compression, you protect your process. You eliminate the root causes of both flow resistance and thermal ignition simultaneously.
We encourage decision-makers to walk the floor and audit current scrap rates today. Look closely for hidden burn marks and repeated short shots on your rejection reports. Use the technical criteria outlined in this article to rigorously evaluate your next tooling partner. Scrutinize their machining tolerances, request flow simulations, and insist on modular inserts. By upgrading your tooling standards and enforcing strict cleaning protocols, you secure long-term production profitability.
A: Standard vent depths for PET typically range between 0.015 mm and 0.025 mm. This highly specific micromillimeter range perfectly accommodates PET’s very low melt viscosity. Precise depths vary slightly depending on the specific location within the mold, tooling temperatures, and part geometry.
A: Yes. Trapped air often causes highly weakened weld lines because the merging polymer fronts cannot fuse properly. It also leads to poor surface finishes, cloudy cosmetic spots, and localized internal voids. Furthermore, flow resistance significantly increases injection times, lowering overall machine output.
A: Operators should perform a light wipe-down of all parting line vents every single shift. We recommend targeted solvent cleaning every few days. You should schedule deep ultrasonic insert cleaning based on specific cycle counts, usually every 100,000 cycles, depending on resin additives.
A: No. Well-engineered passive venting easily handles most standard production runs. However, vacuum assist systems offer tremendous value during high-speed operations. You should actively evaluate vacuum systems when running thick-walled designs or heavily additive-laden resins that generate excessive off-gassing rapidly.
