In high-volume plastic production, intense margin pressures leave zero room for error. Microscopic dimensional deviations in tooling translate directly to compounding financial losses. You see these losses manifest quickly in wasted resin and defective blown bottles on the factory floor. Measuring preform mold concentricity stands as the definitive metric of tooling precision. It directly dictates wall thickness uniformity across every single cavity during production.
This guide provides operations managers and procurement engineers with a robust evaluation framework. You will learn how to assess mold performance objectively and technically. We focus heavily on core-to-cavity alignment as a primary procurement standard. Proper mechanical alignment prevents catastrophic supply chain failures downstream. By understanding the mechanical and thermal dynamics at play, you can make smarter purchasing decisions. We will explore how exact machining tolerances drive factory profitability and why demanding applications require uncompromising accuracy.
Concentricity failures manifest clearly on the production floor. You might notice inconsistent part weights first. Soon, mechanical ejection issues arise. Operators often spend hours adjusting injection parameters to fix these issues. They try to resolve mechanical flaws using software tweaks on the injection machine. This approach rarely works. It only masks the underlying tooling problem and delays actual maintenance.
Uneven wall thickness causes severe downstream blow molding defects. When a defective preform enters the stretch blow molding phase, problems escalate. The infrared ovens heat thin sections much faster than thick sections. The material then stretches inconsistently inside the blow mold. This leads directly to blown bottles featuring dangerously thin walls. These weak bottles often burst during filling operations. You will also notice obvious optical distortions. Consumers quickly reject cloudy or misshapen packaging on retail shelves.
Operators frequently compensate for poor concentricity by increasing overall part weight. They add more resin to ensure the thinnest wall section meets minimum safety thresholds. This "resin penalty" completely destroys lightweighting returns. A few tenths of a gram per part adds up fast. Over millions of cycles, you waste thousands of dollars in excess material costs. You literally give away free plastic with every cycle.
Cycle time degradation presents another major operational cost. Uneven melt distribution creates highly uneven cooling inside the cavity. Thicker wall sections retain heat significantly longer. You must extend the overall cooling phase to prevent deformation upon part ejection. Longer cycles reduce your hourly production output. Your overall equipment effectiveness plummets. Profit margins shrink as energy consumption per part inevitably increases.

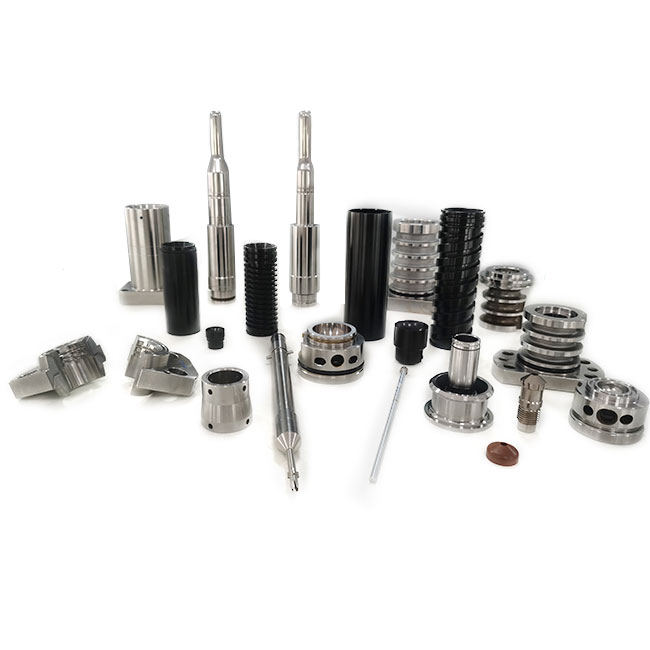

Mechanical alignment demands absolute precision. The physical interaction between the PET preform mold core and cavity determines your manufacturing success. Engineers use highly engineered mechanisms to keep these specific components perfectly centered during operation. You cannot rely on visual assembly alone.
Taper lock systems play a crucial role here. Precision tapers act as a robust mechanical centering guide. When the mold closes, the core taper firmly engages the cavity taper. This creates a secure, perfectly aligned seal. They must withstand immense clamping forces without shifting. A properly machined taper lock prevents lateral movement during the high-pressure injection phase.
Injection pressure naturally attempts to deflect the core pin. Plastic melt rushes into the cavity at extreme velocities, sometimes exceeding 1000 bar. If the base metallurgy is weak, the core actually bends under pressure. We call this phenomenon core shift. Subpar taper alignment heavily exacerbates this bending. The result is a preform thick on one side and thin on the other. You must specify premium hardened steel to resist this deflection.
Thermal expansion realities further complicate mechanical alignment. Injection molding generates massive heat energy. Uneven cooling circuits cause micro-shifts in the cavity block. Poor thermal management misaligns the stack components during continuous operation. Heat expands metal unevenly if channels are poorly placed. You need uniform thermal distribution to maintain physical centering across long production runs.
Buyers must look closely at supplier capabilities before signing contracts. A polished sales pitch does not guarantee dimensional accuracy. You need a highly structured auditing process. You must evaluate multiple dimensions of the manufacturer's facility.
Machining tolerances dictate baseline quality. Standardize your expectations early in the purchasing process. Demand concentricity tolerances within ±0.03mm or better. Verified coordinate measuring machine (CMM) reports are absolutely essential. Ask suppliers to prove their CNC machines can actually hold these tight limits continuously.
Mold base rigidity is equally critical to success. High-grade steel plates resist bending under stress. Robust guide pillars prevent platen deflection under massive clamping force. If the mold base flexes, the stack components shift instantly. You lose concentricity immediately. Invest in oversized guide pins and rigid support structures.
Cooling system architecture directly impacts long-term mechanical alignment. Assess conformal cooling designs carefully. Channel placement must ensure uniform thermal distribution around the gate and neck. Proper cooling protects mechanical alignment by preventing uneven thermal expansion inside the cavity block.
Criteria Comparison Chart
| Evaluation Metric | Standard Commercial Tooling | High-Precision Tooling |
|---|---|---|
| Concentricity Tolerance | ±0.05mm - ±0.08mm | ±0.03mm or better |
| Verification Method | Manual calipers & visual checks | Automated CMM reports |
| Cooling Architecture | Straight drilled channels | Conformal cooling designs |
| Base Rigidity | Standard commercial steel | Premium hardened steel plates |
When evaluating potential suppliers, always follow these steps:
Long-term maintenance determines your ultimate tooling life. Achieving concentricity on day one is relatively easy. Sustaining it over three million cycles is incredibly hard. You need a strategic approach to component replacement.
Interchangeability and precision often conflict in practice. Mixing aftermarket or reverse-engineered stack components degrades concentricity over time. Third-party parts rarely match the exact tolerances of the original manufacturer. They might look identical, but microscopic dimensional deviations exist. These deviations compound over time, thoroughly destroying wall thickness uniformity.

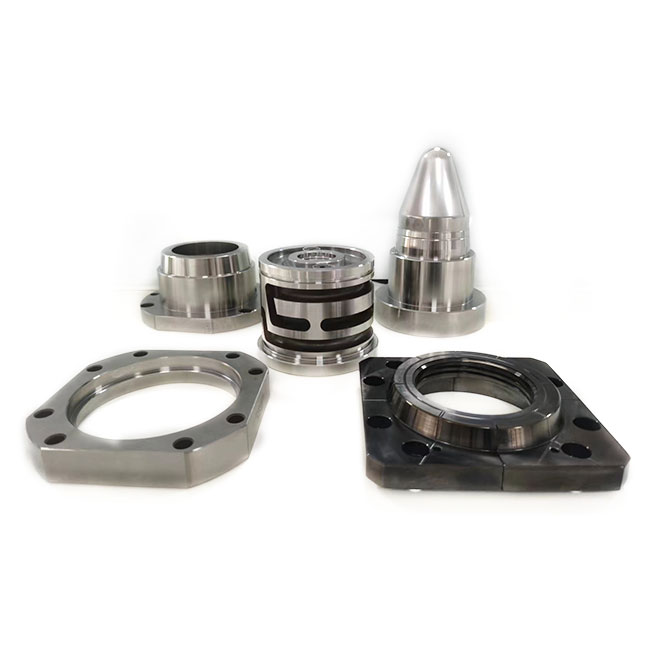

Friction constantly attacks mechanical centering features. Taper locks and neck rings experience severe wear and tear. Over thousands of cycles, metal rubs aggressively against metal. Wear creates physical play in the assembly. This is exactly why original preform mold accessories matter so much. They feature the exact hardness specifications required to resist this friction. Original parts maintain baseline accuracy far longer than cheaper alternatives.
You must implement standardized maintenance protocols. Routine measurements catch emerging problems early. Measure run-out on core pins regularly. Check taper wear during scheduled machine downtime.
Consider these preventative maintenance best practices:
Moving from technical evaluation to a final purchasing decision requires hard data. You must quantify the expected return on investment. Do not base decisions solely on the initial quoted price.
Focus entirely on calculating material savings. Precision tooling enables exact weight control. When you trust your concentricity, you can confidently lower the target part weight. You stop over-packing the cavity just to compensate for thin walls. Saving just 0.5 grams of resin per preform yields massive financial returns. Over ten million cycles, these resin savings quickly offset the premium price of high-end tooling.
Develop a strict vendor validation checklist. Require extensive technical documentation before signing a contract. You need CMM reports for every core and cavity combination. Demand raw material certifications for the mold base steel. Ask for Factory Acceptance Test (FAT) data proving multi-cavity balance. A reliable supplier provides this data willingly.
Demanding applications highly magnify the need for precision. Consider a high-precision edible oil preform mold. Edible oil bottles handle much heavier fluid weights than standard water bottles. They require thicker walls to maintain structural integrity. If concentricity fails here, the bottle simply bursts during transport. A burst oil bottle ruins entire pallets of retail product. It causes catastrophic failure in the supply chain. Premium tooling concentricity proactively prevents these expensive disasters.
Tooling precision is never a luxury. It remains a mandatory prerequisite for profitable, defect-free PET manufacturing. You simply cannot produce high-quality bottles consistently without perfect core-to-cavity alignment. Microscopic deviations always lead to macroscopic financial losses.
We strongly advise buyers to prioritize verifiable machining capabilities. Strict quality control always beats the lowest-initial-cost bid. Cheap molds end up costing substantially more in wasted resin and lost production time. Invest heavily in robust mold bases and optimized cooling systems.
Take action today to protect your production margins. Request a comprehensive technical consultation from a verified tooling supplier. Schedule a mold audit to identify existing concentricity flaws on your current floor. You can also submit your part drawing for a detailed capability assessment. Secure your manufacturing future by demanding uncompromising precision.
A: Manufacturers use Coordinate Measuring Machines (CMM) to inspect individual stack parts before assembly. They meticulously check tapers and core pins for microscopic deviations. Once the mold is running, quality operators use specialized ultrasonic wall thickness gauges on the final molded preform. This dual approach confirms the physical part meets strict uniformity standards.
A: Industry standards generally demand extreme precision. Manufacturers aim for a maximum wall thickness variation of less than 0.1mm. For highly demanding applications, this tolerance tightens to ±0.05mm or better. Acceptable limits ultimately depend on the specific preform design, overall length, and the final bottle's precise blow molding requirements.
A: Yes, absolutely. Even a perfectly machined mold suffers core shift if the injection molding machine is misaligned. If the machine's tie bars or platens lack parallel alignment, clamping forces distribute unevenly. This forces the mold base to flex. Holistic system maintenance ensures both machine and mold work flawlessly together.
A: Edible oil bottles are typically much larger and heavier than standard water bottles. They hold dense fluids and face severe drop-impact risks during shipping. Uniform wall thickness is non-negotiable for maintaining structural integrity. Any thin section creates a dangerous weak point. Burst bottles lead to massive product loss and messy supply chain disruptions.
