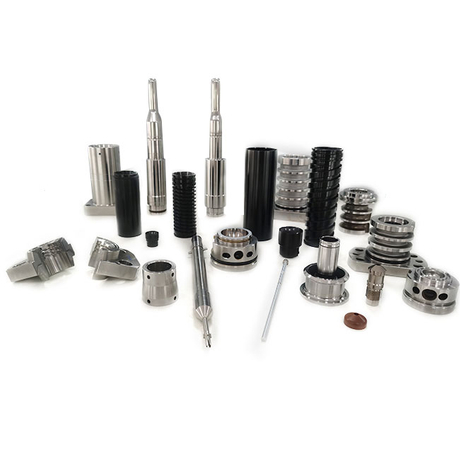

Continuous production cycles inevitably degrade mold tooling over time. Operating a high-volume injection system requires constant vigilance. However, manufacturers often diagnose tooling wear far too late. You usually notice the damage only after scrap rates spike. Sometimes downstream blow-molding failures occur first. This delay causes serious financial consequences. Even a few micrometers of wear translate to significant material waste. Cycle times increase silently, and your profit margins shrink. Neglecting component health leads to severe operational bottlenecks. We need a more proactive approach to tooling maintenance. We designed this guide for production managers facing these exact challenges. This article provides a clear technical evaluation framework. You will learn how to identify wear-induced defects early. We will help you assess component viability accurately. Finally, you will discover exactly when to refurbish or replace your tooling equipment.
Understanding tooling wear requires examining the extreme conditions inside an injection system. Mold components endure immense physical and thermal stress. We can categorize this degradation into four primary mechanics.
You can often trace specific part defects directly to worn tooling components. Production managers must recognize these visual symptoms early. Catching them early prevents larger manufacturing disasters downstream.
Eccentricity remains one of the most dangerous preform defects. Worn taper locks typically serve as the root cause here. Core shifting occurs under high injection pressure. The preform walls become uneven. These uneven preforms blow inconsistently later. You will end up producing weak bottle walls. Consumers might experience bottle bursting during handling or transport.
Flashing usually indicates deformation at the mold interface. The cavity lip or neck ring interface rounds off over time. Material escapes the cavity during the injection phase. This leakage creates sharp cosmetic defects. Flashing also causes major logistical headaches. Flashed parts frequently jam automated sorting lines. You will suffer unnecessary downtime trying to clear these jams.
Trapped gases create severe aesthetic and structural flaws. Crushed or clogged preform mold venting causes this exact issue. Gas cannot escape during high-speed injection. The trapped air ignites under pressure. We call this the diesel effect. It leaves dark burn marks on the plastic. It also prevents complete filling, causing short shots.
A poorly formed gate vestige ruins the preform base. Wear at the gate insert usually causes this defect. Improper cooling also plays a major role. Worn thermal interfaces fail to extract heat fast enough. The plastic remains hot for too long. This delay induces unwanted crystallinity near the gate area.
| Defect Type | Primary Root Cause | Production Outcome |
|---|---|---|
| Eccentricity | Worn taper locks causing core shift | Weak bottle walls and uneven blow molding |
| Flashing | Deformed cavity lip or neck ring | Cosmetic flaws and automated line jams |
| Burn Marks | Clogged or crushed vents | Diesel effect and incomplete short shots |
| Gate Vestige | Worn gate insert or poor cooling | Base crystallinity and blow molding failure |
Defects represent only the visible portion of tooling degradation. Cycle time inflation acts as a silent profit killer. Many operators fail to connect slower production speeds to worn components.
Efficient cooling requires perfect contact between the plastic and the steel. Worn cavities lose their precise contact surfaces over time. Cooling circuits become far less effective. Heat transfer slows down significantly. Operators usually respond by extending the cooling time artificially. They do this to prevent part deformation upon ejection. This forced extension destroys your daily production targets.
Injection speed dictates your overall cycle rhythm. Degraded vents force technicians to slow down the injection speed. Fast injection pushes air into clogged vents too quickly. Slower injection avoids the dreaded diesel effect and burn marks. However, slowing down the fill phase inflates the cycle time directly. You sacrifice volume to maintain basic quality.
A healthy tool should never force compromises. It must allow for aggressive cooling. It should handle rapid injection effortlessly. Part dimensions must remain perfectly stable upon ejection. If you must tweak parameters daily, your tooling is failing. Consistent parameter settings define true molding success.
High-cavity systems amplify every minor wear issue. A small defect in a single cavity cascades quickly. Managing these massive systems requires exceptional precision and strict maintenance routines.
Modern production relies heavily on 48, 72, or 96-cavity systems. Dimensional variance in just two or three worn cavities causes trouble. These few bad cavities skew the entire mold's balance. The manifold struggles to distribute melt evenly. Good cavities might overpack while worn cavities underfill. This imbalance ruins overall batch quality.

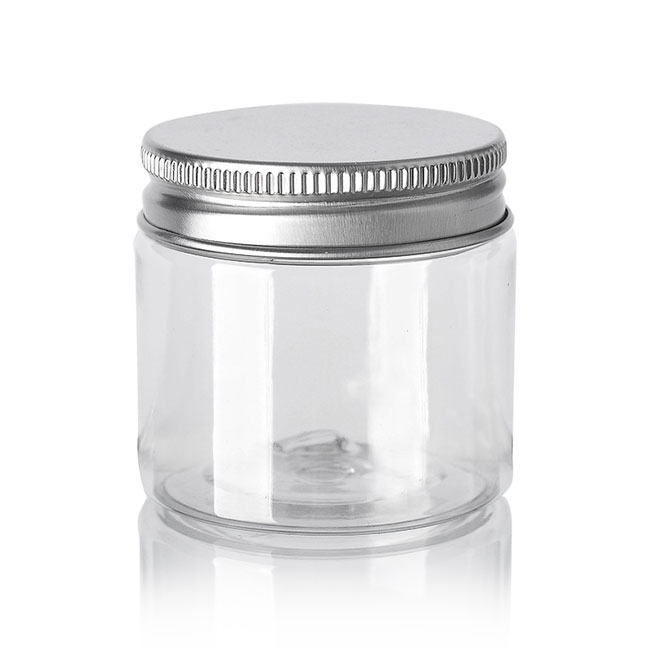

Running a high-cavity jar bottle preform mold introduces unique challenges. Jar preforms feature wide mouths and larger core surface areas. These larger areas require flawless alignment. They also demand extremely aggressive cooling to maintain cycle efficiency. Even minor core shifting destroys the wide neck profile immediately.
You must evaluate high-cavity replacement vendors carefully. Component interchangeability is absolutely non-negotiable. You cannot afford custom-fitting every replacement part. Tight machining tolerances guarantee plug-and-play functionality. Always demand detailed quality inspection reports from your tooling partner. Consistency across all cavities secures your production margins.
Deciding between refurbishment and replacement requires hard data. Guesswork leads to wasted budgets and recurring failures. Production managers need a structured diagnostic framework to make profitable decisions.
Start by auditing your current symptoms thoroughly. Create a strict baseline for part weight and concentricity. You should also measure visual clarity and gate quality. Document these metrics across multiple production shifts. Compare this data against your original commissioning parameters. Large deviations highlight severe component degradation.
Do not rely on visual inspections alone. You should utilize PET preform moldflow analysis to validate your theories. This software simulates melt flow behavior accurately. You can compare how worn dimensions alter the flow against baseline specs. It shows exactly where shear stress increases. It provides empirical data to justify rebuild investments.
Select your tooling upgrade partner carefully. Look for vendors offering strict guarantees on steel hardness. They must use advanced precision machining equipment. They should provide transparent lifespan metrics for every component. A reliable partner ensures your new tooling performs flawlessly from day one.
| Condition Evaluated | Refurbish Decision | Replace Decision |
|---|---|---|
| Venting Health | Minor vent crushing or localized blockages | Systemic vent flattening across all cavities |
| Core Alignment | Localized taper lock wear on a few cavities | Systemic core shift causing widespread eccentricity |
| Parting Line | Light burrs removable by minor polishing | Fundamentally deformed or rounded cavity lips |
| Cooling Channels | Light scale removable via chemical flushing | Compromised channel integrity or heavy corrosion |
The health of your tooling components dictates your overall business success. Your core and cavity conditions establish the baseline profitability of the entire PET packaging line. Ignoring wear leads directly to wasted energy, scrap material, and lost time.
A: A high-quality preform mold core and cavity typically lasts 3 to 5 million cycles. This lifespan depends heavily on your material grade. Your daily maintenance routines also play a huge role. Running excessive clamping force will accelerate wear rapidly. You should inspect components every million cycles to catch early degradation.
A: Yes. Flow simulation identifies high-pressure zones very accurately. It reveals potential shear stress areas inside the cavity. Engineers use this empirical data during the design phase. They can preemptively strengthen vulnerable regions. This analysis helps prevent premature wear before cutting any actual steel.
A: Using an ultrasonic thickness gauge is the fastest method. Technicians measure the preform walls directly beside the machine. You can also section preforms manually to measure concentricity deviations. Documenting these quick measurements helps spot core shift before it ruins a whole batch.
